Automatic Rotary Cup Fill/Seal Machine – TRK-50
From bagging to labeling to shrink wrapping, TeleSonic PAK LLC provides a selection of machines for all your packaging needs! We also offer coffee cup machines, supplies, and more. Take a look at all the products we have available.

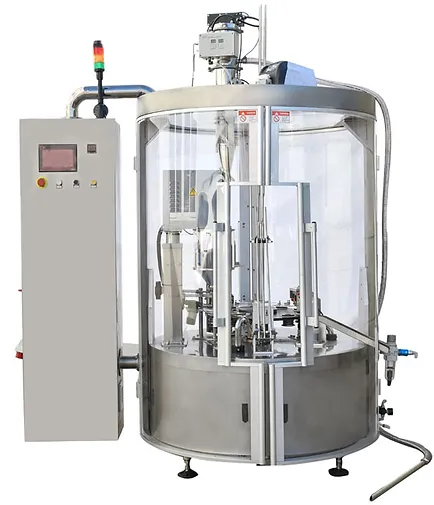

Automatic Rotary Cup Fill/Seal Machine – TRK-50
Uses:

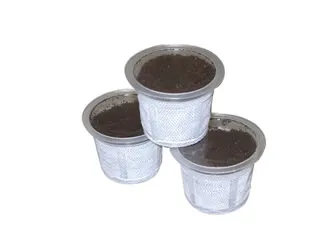

Designed to automatically package free flowing ground coffee and tea products,
with pre-made filter cups.
Features:
Intermittent motion cup filling & sealing, complete with OMRON PLC Control,
color touch screen, servo driven auger filler, auto cup denester, no cup no fill,
adjustable volume in grams, lid from roll stock. Auto rejection of defective cups.
Transparent product hopper with high/low sensor, static eliminator, self-
diagnostics, printed film registration control, safety switches, solid state
temperature control. Auto pick/place of sealed cups to take a way discharge tray.
Specifications:
-
Stainless steel construction & corrosion resistant material.
-
Cup Size: Regular filter cup. Up to 12 grams/cup.
-
Speed: Up to 50 cups per minute.
-
Power: 220 volt, 3 phase, 60 Hz.
-
Air: 0.65 m3/min. 0.6 MPa.
-
Weight: 1,780 lb.
-
Dimensions: 1,745 mm (L) X 1150 mm (W) X 2,850 mm (H)
Optional:
-
Vacuum Lifter.
-
Nitrogen gas flush.
-
Discharge & counting conveyors.
TELESONIC Automatic inline system available for pre made and vacuum formed cup and trays with roll stock lidding and over cappers.
