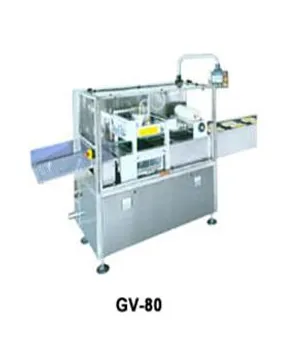

GV-80 is an electronic packaging machine for sealing preformed plastic containers. The products can be packaged in MAP protective atmosphere, vacuum or seal only, from salami to fish, from pasta to cheese, specialty foods, vegetables and especially meat which, with protective atmosphere maintains its natural color and freshness without freezing.

Specifications:

• Stainless steel body;

• In-feed conveyor with three load positions (GV80/3) or with five positions (GV80/5) for the application of suitable filling-dosing devises and tray denester;

• Max tray size: single 15" x 10" x 4" H, double  10" x 7" x 4" H triple 10 x 4 x 4" H;

• Gas storage tank ( 22 L.) complete with safety valve and pressure reducer to give a constant pressure in the package;

• Work height 35" with adjustable feet;

• Max film width 18 , max diameter 11" ;

• Adjustable sealing temperature up to 200° C;

• Output up to 15 cycles per minute with sealing only;

• Free air consumption 6 liters per cycle; working pressure 6 BAR (air compressor not included);

• Power: 5 kW three phase ( plus pump) standard 230/400V-50 Hz;

• Weight: 730 Kg (plus pump).

• External vacuum unit, displacement on request:

• 160 cu. m.  per hour kW 4 kg 150

• 250 cu. m.  per hour kW 7.5 kg 210
