FW-1221R
From bagging to labeling to shrink wrapping, TeleSonic PAK LLC provides a selection of machines for all your packaging needs! We also offer coffee cup machines, supplies, and more. Take a look at all the products we have available.

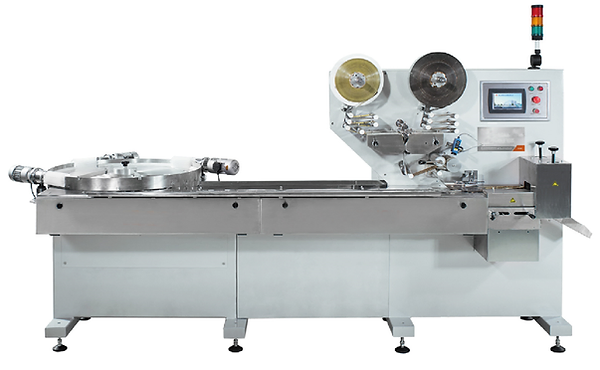

FW-1221R
USES
Designed to automatically package solid candy bars, cookies, food and chemical products, etc.
FEATURES:
Continuous motion flow wrapping, equipped with Allen Bradley component & AB PLC control, color touch screen. Servo driven
infeed systems. Double unwinding, auto sorting & feeding product as the speed up to 800 ppm. Auto diagnostics error on screen. No
product no bagging capabilities, water cooling system for hot/cold sealing. Printed film registration control, safety switches, solid state
temperature control. All stainless steel construction and tool free change over parts.
PACKAGING MATERIALS
All heat seal-able laminations, coated and cold seal material, etc. OPTIONAL:
* Various Feeding Systems.
* Date coder, MARKEM thermal digital printer.
*Tear notch, Nitrogen gas flush. Discharge & counting conveyors.*Individual check weigher SPECIFICATIONS:
POUCH SIZE:1-1/4"-5-14" L, I"-2-1/2" (W)
SPEEDUp To 800 ppm
POWER:220 Volt, 3 Phase, 5060 Hz, 9.6 Kw.
AIR:Im3 /min. 0.6 MPa
WEIGHT3720 LB DIMENSIONS:19ft(L)X38"(W)x76 (H)
Designed to automatically package solid candy bars, cookies, food and chemical products, etc.
FEATURES:
Continuous motion flow wrapping, equipped with Allen Bradley component & AB PLC control, color touch screen. Servo driven
infeed systems. Double unwinding, auto sorting & feeding product as the speed up to 800 ppm. Auto diagnostics error on screen. No
product no bagging capabilities, water cooling system for hot/cold sealing. Printed film registration control, safety switches, solid state
temperature control. All stainless steel construction and tool free change over parts.
PACKAGING MATERIALS
All heat seal-able laminations, coated and cold seal material, etc. OPTIONAL:
* Various Feeding Systems.
* Date coder, MARKEM thermal digital printer.
*Tear notch, Nitrogen gas flush. Discharge & counting conveyors.*Individual check weigher SPECIFICATIONS:
POUCH SIZE:1-1/4"-5-14" L, I"-2-1/2" (W)
SPEEDUp To 800 ppm
POWER:220 Volt, 3 Phase, 5060 Hz, 9.6 Kw.
AIR:Im3 /min. 0.6 MPa
WEIGHT3720 LB DIMENSIONS:19ft(L)X38"(W)x76 (H)
